Data Grid Trouble displaying data from linked field

Anvil Q&A
1

I’m attempting to view data from my Data Table that has a linked field populated by a drop down selection from an entry form. Data Tables can be seen below:

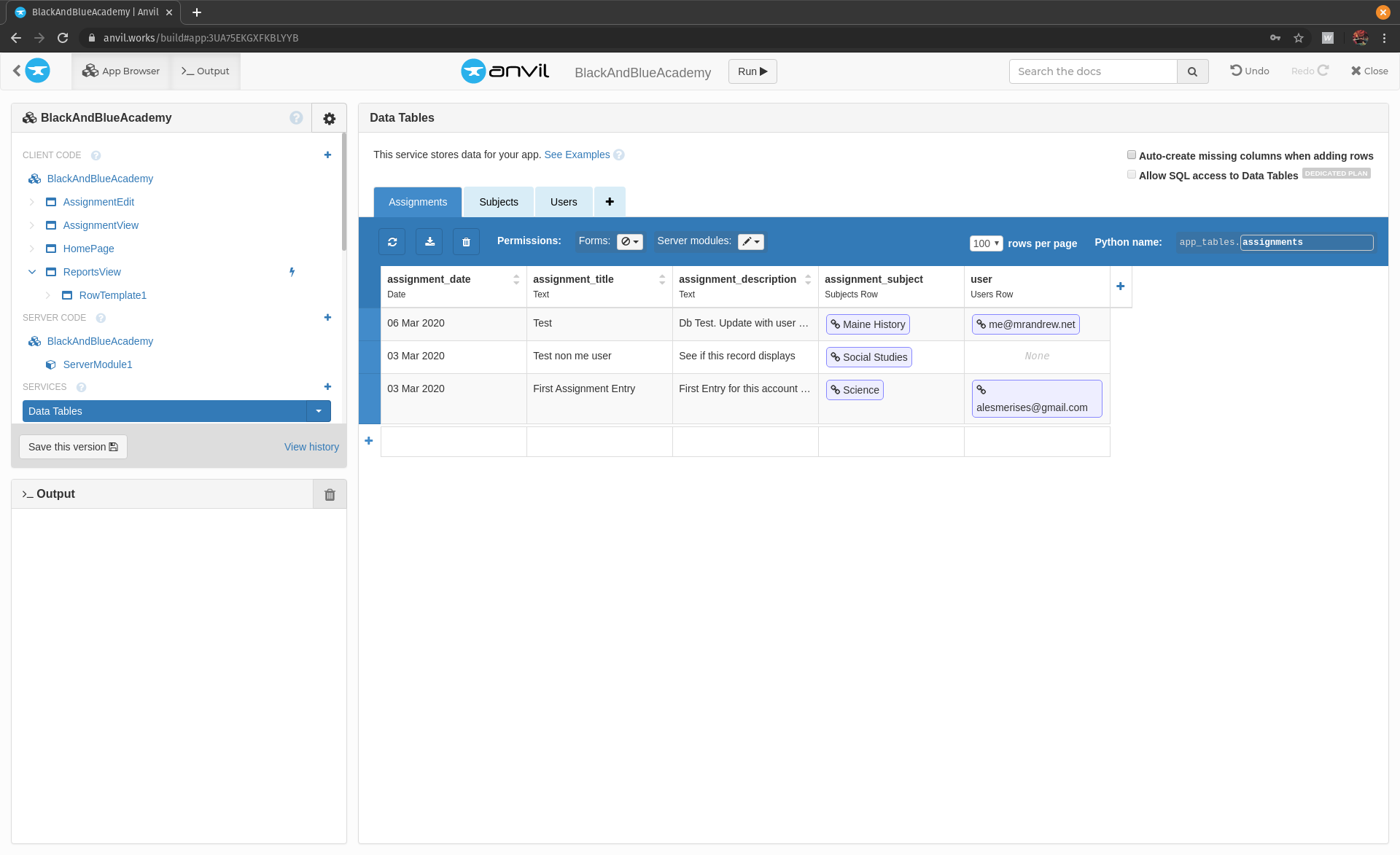

Screenshot from 2020-03-08 10-14-39
Screenshot from 2020-03-08 10-14-391920×1173 156 KB

and

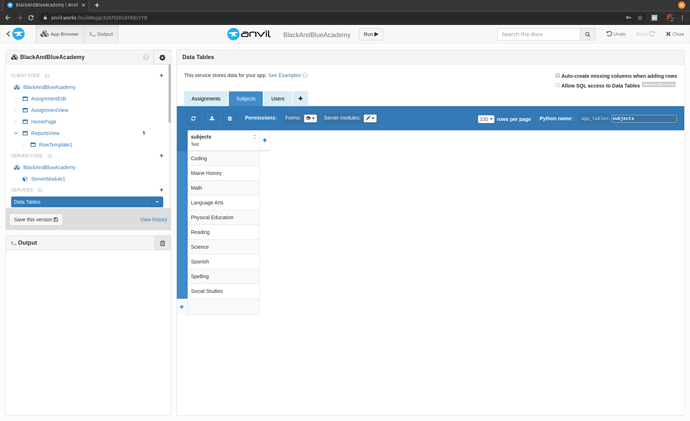

Screenshot from 2020-03-08 10-15-36
Screenshot from 2020-03-08 10-15-361920×1173 134 KB

In the Data Grid properties for the column key I have tried using ‘assignment_subject’ which only results in <LiveObject: anvil.tables.Row>. I have also tried ‘self.item[‘assignment_subject’]’ which results in no data being returned for that column. I have also tried other variations of self.item and assignment_subject without any succes.

Thank you in advance!

1 Like
2

Hi @mrandrew and welcome to the forum.

Try the following:

  • In the data grid row template add a label to that particular cell
  • In the properties for the label you just added, add a data binding and bind the text property to
self.item['assignment_subject']['subjects']

related documentation

Anvil Docs | Data Grids

related gif

3 Likes
3

Worked like a Champ! Thank you very much!

1 Like
