Hello Anvil Community.
In a Data Grid, displaying the sum of a column, such as the sales column, should be a simple task, but for beginners it can be a difficult task, so I’m sharing 3 examples of how to do it.

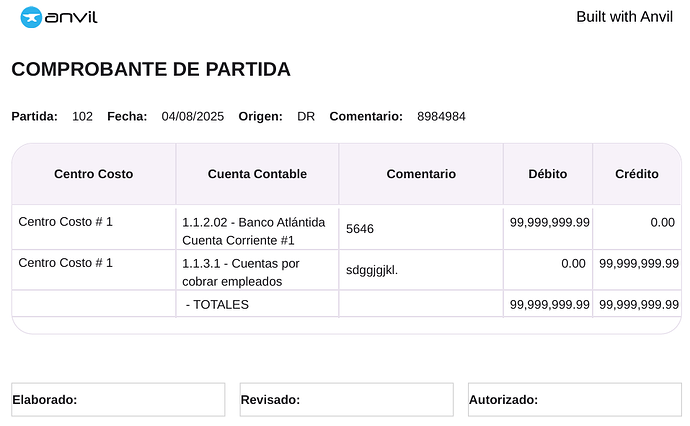

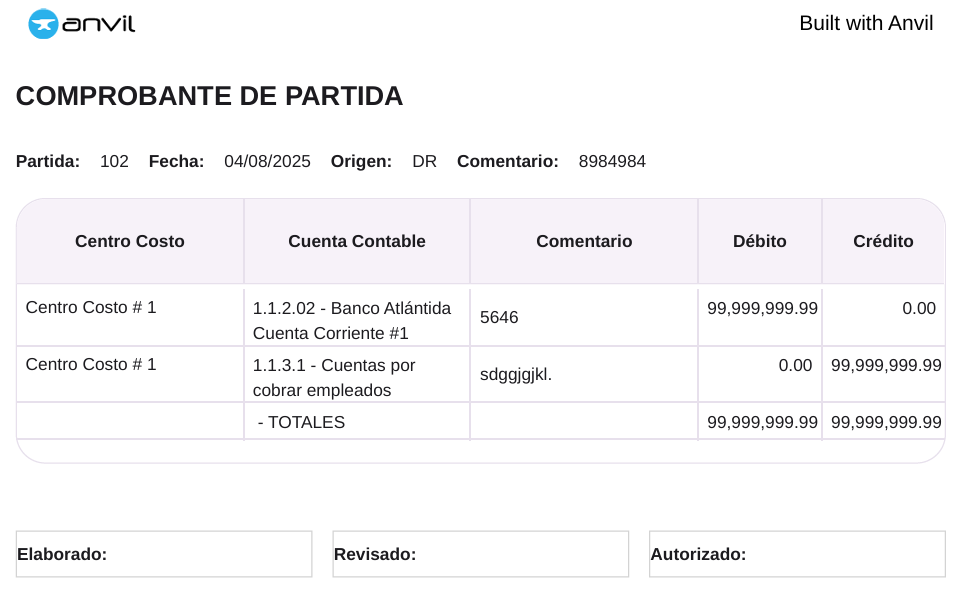

Example 1, Using datagrid as a component and properties.
class reporte_diario_partida(reporte_diario_partidaTemplate):
def __init__(self, fila_partida, **properties):
# Set Form properties and Data Bindings.
self.init_components(**properties)
self.fila_partida = fila_partida
self.cargar_datagrid()
self.actualizar_componentes()
self.label_6.border ="1px solid LightGray"
self.label_7.border ="1px solid LightGray"
self.label_8.border ="1px solid LightGray"
def cargar_datagrid(self):
if self.fila_partida:
lineas = list(anvil.server.call('obtener_lineas_partida', self.fila_partida['NumPda'], 'DR'))
# Calcular totales
total_debito = sum(f["Debito"] or 0 for f in lineas)
total_credito = sum(f["Credito"] or 0 for f in lineas)
# Crear la fila de totales
fila_total = {
"Centro_Costo": None,
"Cuenta_Contable": {"Codigo": "", "Nombre": "TOTALES"},
"Comentario": "",
"Debito": total_debito,
"Credito": total_credito
}
# Agregar la fila de totales al final
lineas.append(fila_total)
# Asignar al repeating panel
self.repeating_panel_1.items = lineas
def actualizar_componentes(self):
self.lblPartida.text = self.fila_partida['NumPda']
self.lblOrigen.text = "DR"
self.lblFecha.text = self.fila_partida['Fecha'].strftime('%d/%m/%Y') # formato bonito
self.lblComentario.text = self.fila_partida['Comentario']

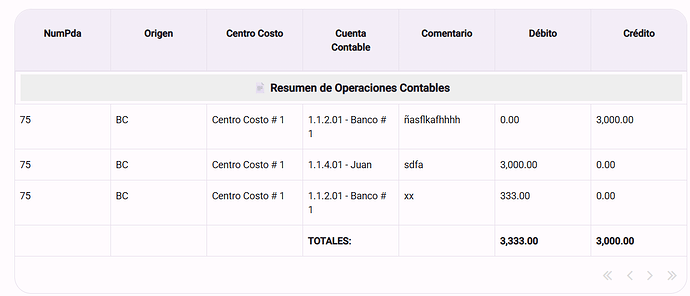

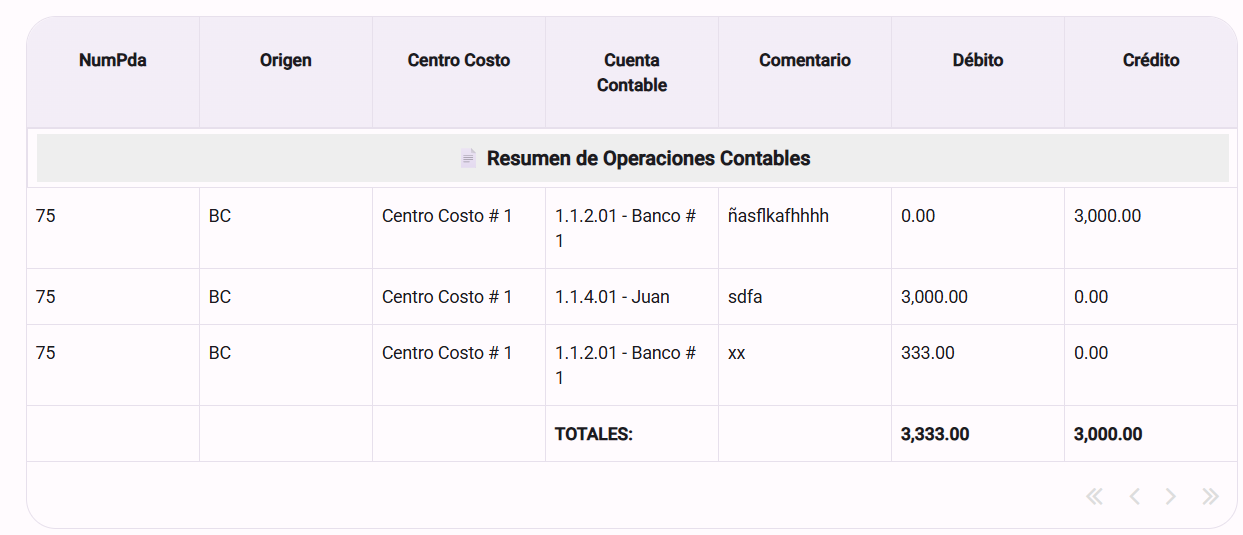

Example 2, Create and manipulate data grid with code. formatted, Sum the lines in the Debit and Credit columns, Displays rows linked to other tables.
class Form2(Form2Template):
def __init__(self, **properties):
self.init_components(**properties)
# Crear el DataGrid
self.mi_datagrid = DataGrid()
self.mi_datagrid.role = 'tonal-data-grid' #✅FORMATTED
self.mi_datagrid.columns = [
{"id": "NumPda", "title": "NumPda", "data_key": "NumPda"},
{"id": "Origen_pda", "title": "Origen", "data_key": "Origen_pda"},
{"id": "Centro_Costo", "title": "Centro Costo", "data_key": "Centro_Costo"},
{"id": "Cuenta_Contable", "title": "Cuenta Contable", "data_key": "Cuenta_Contable"},
{"id": "Comentario", "title": "Comentario", "data_key": "Comentario"},
{"id": "Debito", "title": "Débito", "data_key": "Debito"},
{"id": "Credito", "title": "Crédito", "data_key": "Credito"},
]
# Agregar al panel column_panel_1
self.column_panel_1.add_component(self.mi_datagrid)
# Encabezado personalizado (opcional)
encabezado = DataRowPanel()
encabezado.add_component(
Label(
text="📄 Resumen de Operaciones Contables",
background="#eeeeee",
bold=True,
align="center",
font_size=16
),
full_width_row=True,
)
self.mi_datagrid.add_component(encabezado)
# Obtener datos
datos = list(app_tables.contabilidad.search(tables.order_by('Fecha', ascending=False), NumPda=75))
# Inicializar totales
total_debito = 0
total_credito = 0
# Agregar filas al DataGrid
for fila in datos:
fila_panel = DataRowPanel()
fila_panel.add_component(Label(text=str(fila['NumPda'])), column="NumPda")
fila_panel.add_component(Label(text=str(fila['Origen_pda'])), column="Origen_pda")
# Centro de Costo
centro = fila['Centro_Costo']
fila_panel.add_component(Label(text=centro['Nombre_cc'] if centro else ""), column="Centro_Costo")
# Cuenta Contable
cuenta = fila['Cuenta_Contable']
if cuenta:
fila_panel.add_component(Label(text=f"{cuenta['Codigo']} - {cuenta['Nombre']}"), column="Cuenta_Contable")
else:
fila_panel.add_component(Label(text=""), column="Cuenta_Contable")
fila_panel.add_component(Label(text=fila['Comentario'] or ""), column="Comentario")
debito = fila['Debito'] or 0
credito = fila['Credito'] or 0
fila_panel.add_component(Label(text=f"{debito:,.2f}"), column="Debito")
fila_panel.add_component(Label(text=f"{credito:,.2f}"), column="Credito")
total_debito += debito
total_credito += credito
self.mi_datagrid.add_component(fila_panel)
# Fila resumen de totales
fila_total = DataRowPanel()
fila_total.add_component(Label(text=""), column="NumPda")
fila_total.add_component(Label(text=""), column="Origen_pda")
fila_total.add_component(Label(text=""), column="Centro_Costo")
fila_total.add_component(Label(text="TOTALES:", bold=True), column="Cuenta_Contable")
fila_total.add_component(Label(text=""), column="Comentario")
fila_total.add_component(Label(text=f"{total_debito:,.2f}", bold=True), column="Debito")
fila_total.add_component(Label(text=f"{total_credito:,.2f}", bold=True), column="Credito")
self.mi_datagrid.add_component(fila_total)

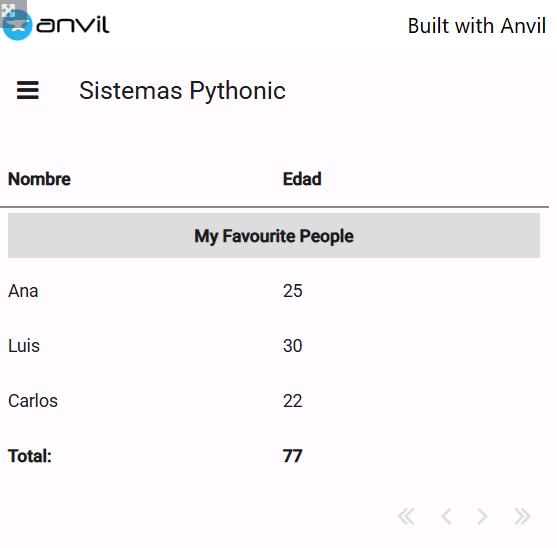

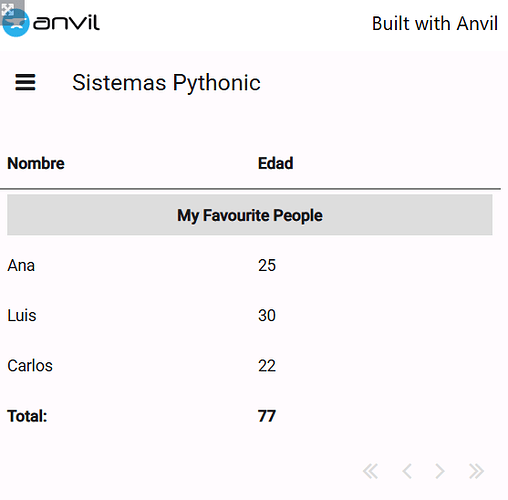

Example 3,
class Form1(Form1Template):
def __init__(self, **properties):
# Set Form properties and Data Bindings.
self.init_components(**properties)
# Crear el DataGrid
self.mi_datagrid = DataGrid()
self.mi_datagrid.columns = [
{ "id": "nombre", "title": "Nombre", "data_key": "nombre" },
{ "id": "edad", "title": "Edad", "data_key": "edad" }
]
# Agregarlo al formulario (a un ColumnPanel)
self.column_panel_1.add_component(self.mi_datagrid)
# Encabezado personalizado
title_row = DataRowPanel()
title_row.add_component(Label(text="My Favourite People",
background='#dddddd',
bold=True,
align='center'),
full_width_row=True)
self.mi_datagrid.add_component(title_row)
# Datos de ejemplo
datos = [
{"nombre": "Ana", "edad": 25},
{"nombre": "Luis", "edad": 30},
{"nombre": "Carlos", "edad": 22}
]
# Agregar filas
total_edad = 0
for fila in datos:
fila_panel = DataRowPanel()
fila_panel.add_component(Label(text=fila["nombre"]), column="nombre")
fila_panel.add_component(Label(text=str(fila["edad"])), column="edad")
self.mi_datagrid.add_component(fila_panel)
total_edad += fila["edad"]
# Fila resumen de total
fila_total = DataRowPanel()
fila_total.add_component(Label(text="Total:", bold=True), column="nombre")
fila_total.add_component(Label(text=str(total_edad), bold=True), column="edad")
self.mi_datagrid.add_component(fila_total)
