Anvil app server behind nginx reverse proxy

Anvil Q&A
1

Hello,

I would like to use a nginx proxy in front of my anvil-app server (local server deployment). The nginx server is running with a https certificate and the anvil-app-server is running with http. I tried the following nginx settings:

location /SUBPATH {
  #rewrite /SUBPATH/(.*) $1 break;
  proxy_buffering off;
  proxy_set_header Host $host;
  proxy_set_header X-Real-IP $remote_addr;
  proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
  proxy_set_header X-NginX-Proxy true;
  proxy_read_timeout 5s;
  proxy_connect_timeout 5s;
  proxy_pass http://ANVILSERVER:3030/;
  proxy_redirect http://ANVILSERVER:3030/ https://MYSERVER/SUBPATH;

  location ~* .+\.(ico|jpe?g|gif|css|js|flv|png|swf)$ {
    proxy_cache backcache;
    proxy_buffering on;
    proxy_cache_min_uses 1;
    proxy_ignore_headers Cache-Control;
    proxy_cache_use_stale updating;
    proxy_cache_key "$scheme$request_method$host$request_uri$is_args$args";
    proxy_cache_valid 200 302 60m;
    proxy_cache_valid 404 1m;
#
    proxy_pass http://ANVILSERVER:3030;
    }

  location = /SUBPATH/ws/ {
    proxy_set_header Host $host;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_set_header X-Forwarded-Proto $scheme;
    proxy_http_version 1.1;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection “Upgrade”;
    proxy_pass https://ANVILSERVER:3030;
    proxy_read_timeout 60;
    proxy_redirect https://ANVILSERVER:3030/ https://MYSERVER/SUBPATH;
    }
  }

But I am not getting everything from the app to the nginx proxy:

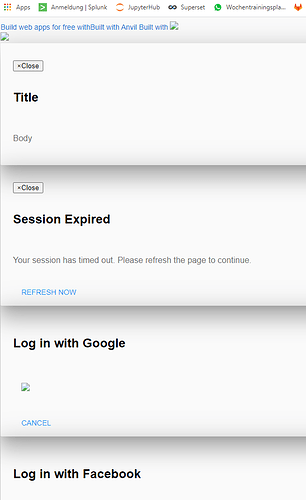

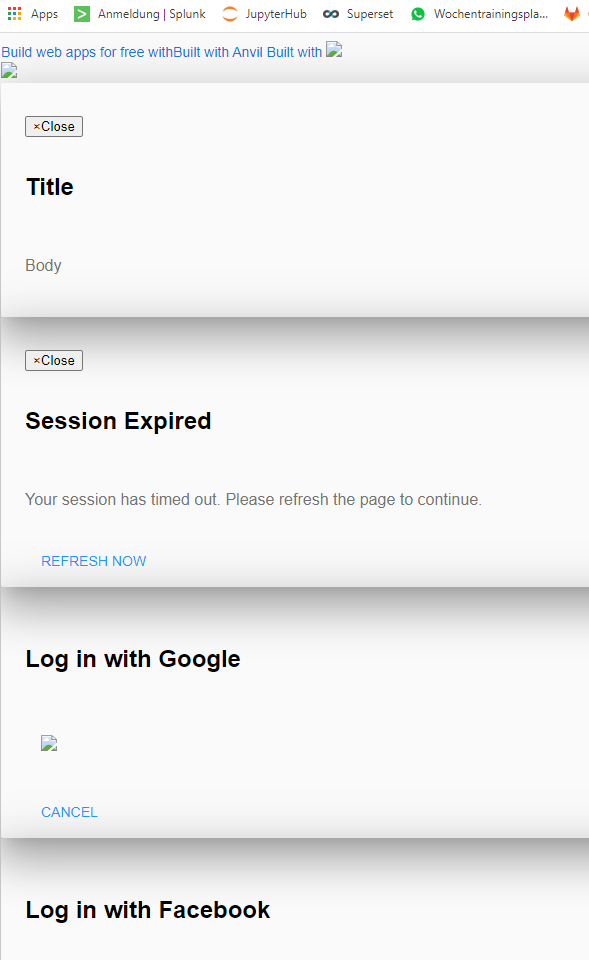

Screenshot 2021-09-01 233612
Screenshot 2021-09-01 233612589×960 25.2 KB

I am starting the anvil server with the following command:

anvil-app-server --app app_name --database "jdbc:postgresql://MYDBINSTANCE/MYDB?username=DBUSER&password=PWD" --disable-tls --ip 0.0.0.0 --port 3030  --origin https://MYSERVER/SUBPATH

Thank you for your help!

2

Hi @jan.weisenstein,

The App Server assumes it has full control of an origin, so if you want it to coexist with other content you’ll want to run it on a separate subdomain (eg app.myserver.com) rather than a subpath (myserver.com/myapp)

3

I see both proxy and proxy_redirect - seems to me you should have one or the other.

How are your symbolic names ANVILSERVER and MYSERVER defined? I get the feeling you might be on Windows. My stuff is all Linux and the nginx reverse proxy requires the link from name to IP to be made in /etc/hosts

4

Hello, I am trying the same thing - anvil local app server behind a nginx reverse proxy, with certbot for https - and I am getting the same output in the browser. Meanwhile, browsing on the local machine/ localhost gives the desired result. Has there been any progress in solving this problem?

5

Has anyone figured this out? I’m running into the same issue.

Thank you.

6

For anyone else struggling with this in the future. In my anvil-runtime config.yaml I had to add these options (note that the ORDER of these seems to be important!):

disable-tls: true
origin: “https://FQDN”
port: 3030
add-hsts-headers: true

In nginx, I had to add:

server {
        server_name FQDN;
        location / {
                proxy_pass       http://127.0.0.1:3030;
                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
                proxy_set_header X-Forwarded-Proto $scheme;
                proxy_set_header X-Forwarded-Host  $host;
                proxy_set_header X-Forwarded-Port  $server_port;
                proxy_set_header Host $host;
                proxy_set_header X-Real-IP $remote_addr;
                proxy_http_version 1.1;
                proxy_set_header Upgrade $http_upgrade;
                proxy_set_header Connection “Upgrade”;
                proxy_read_timeout 60;
                proxy_redirect http://127.0.0.1:3030 https://FQDN;
        }
7

Did anyone succeed to find a solution to run an anvil app in a subpath of a domain used by other applications ?

I’m running into the same problem. I tried the solution suggested in the previous comment but it’s not working.

Thank you !

8

We haven’t tried using a sub-path. Maybe you could redirect that sub-path to a new sub-domain that the anvil-runtime would live at?

9

Anyone found a fix for this, also running into this issue needing to put my anvil app on a subpath

10

Does this mean each anvil app i would want to put behind my reverse proxy needs it’s own separate subdomain?
